ORION

Every rolled product measured, at line speed

Non-contact profile measurement for rolled products from rebar to rails and beams, verified against your reference data.

Talk to our sales team

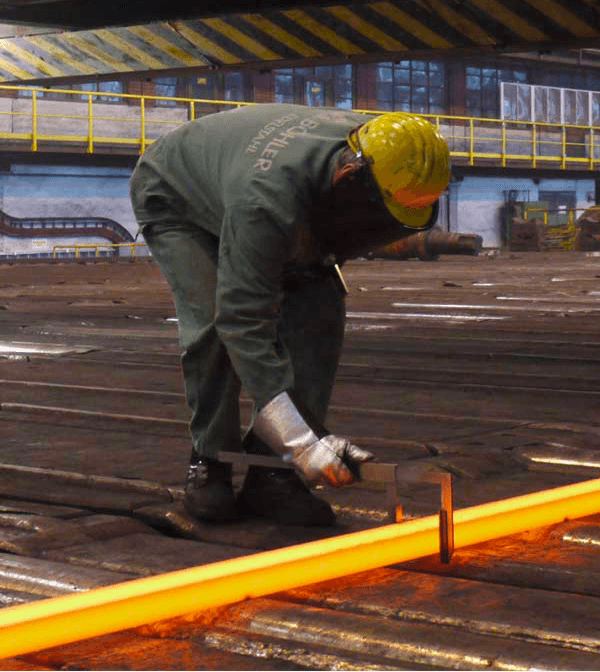

Manual measurement covers a sample and depends on the operator.

The Old Way

The Challenge

Dimensional deviations go unnoticed

Rolling forces, thermal expansion, and roll wear change the geometry of your product continuously. Conventional inspection cannot keep up.

Manual inspection is slow. Gauges and calipers take an operator off the line for every measurement, and two operators rarely arrive at the same number.

Sampling leaves gaps. Off-line checks cover a fraction of production, so a deviation that appears between samples runs through to the next stage unchecked.

Complaints arrive late. By the time a customer reports a geometry problem, the cost is scrap, rework, and a claim against a delivery you have already shipped.

The new way

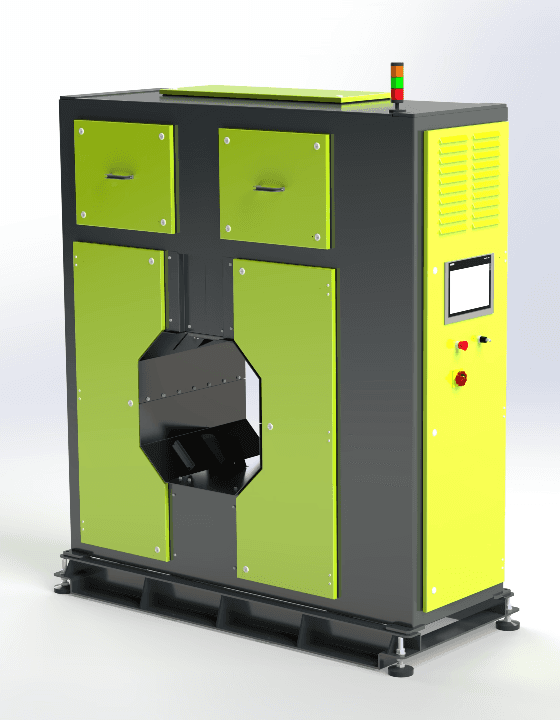

ORION measures every product continuously, without contact.

Our Solution

Every deviation on screen, in real time

ORION measures the profile of every rolled product continuously and without contact. The geometry is checked against your own reference data while the product is still in the line.

No operator, no gauge. The measurement runs automatically and without contact, so nobody steps onto the line and the result no longer depends on who takes it.

Full length, every piece. ORION measures continuously instead of sampling, so there is no gap between checks for a deviation to hide in.

On screen while it matters. Results appear at the viewing station during production, early enough to correct the mill rather than sort the product afterwards.

Nominal dimensions and the rolling defects that go with them

ORION evaluates every cross-section against your reference geometry and reports both the dimensions and the classical rolling defects relevant to the product type.

Round profiles

Maximum and minimum diameter

Over-filling on one or both sides

Under-filling on one or both sides

Rolled-up edges

Cross shift of rolls

Rectangular profiles

Width and height

Dog bone deformation

Curved and unfilled sides

Rhombicity

Cut, rounded, and blank edges

Rebar

Core diameter

Rib height

Weight per metre

Rails

Head width and height

Web thickness

Foot width

Overall height

Comparison against reference profile

H-, I-, and U-beams

Flange width and thickness

Web thickness

Overall height

Flange symmetry, top against bottom

Special profiles

Free-form measurement against a reference profile you define

Optical measurement since the 1990s

Teragon develops laser measurement technology for steel rolling mills in close partnership with Hexagon | NEXTSENSE. First profile measurement system in 1995, first combined OSIRIS system in 2016.

Which configuration fits your line?

Share your product type, cross section, line speed, and temperature, and our sales team will scope the right ORION system with you.

Talk to our sales team

How does ORION differ from OSIRIS?

ORION uses the same OSIRIS platform, configured for profile measurement only.

Which measuring field do I need?

It depends on your largest cross section; we help size it during scoping.

How long does evaluation take?

Results appear instantly at the viewing station as the product passes.

Can ORION connect to our Level-2 system?

Yes, through the standard database interface; deeper integration is optional.
